1000 Base-T 2x2 Port RJ45 Gigabit Magnetic Jacks Green/Yellow LED TRJG27037AENL
TRJG27037AENL 2x2 Port RJ45 Magnetic Jacks with 1000 Base-T Integrated Magnetics, Green/Yellow LED, Tab Both, RoHS

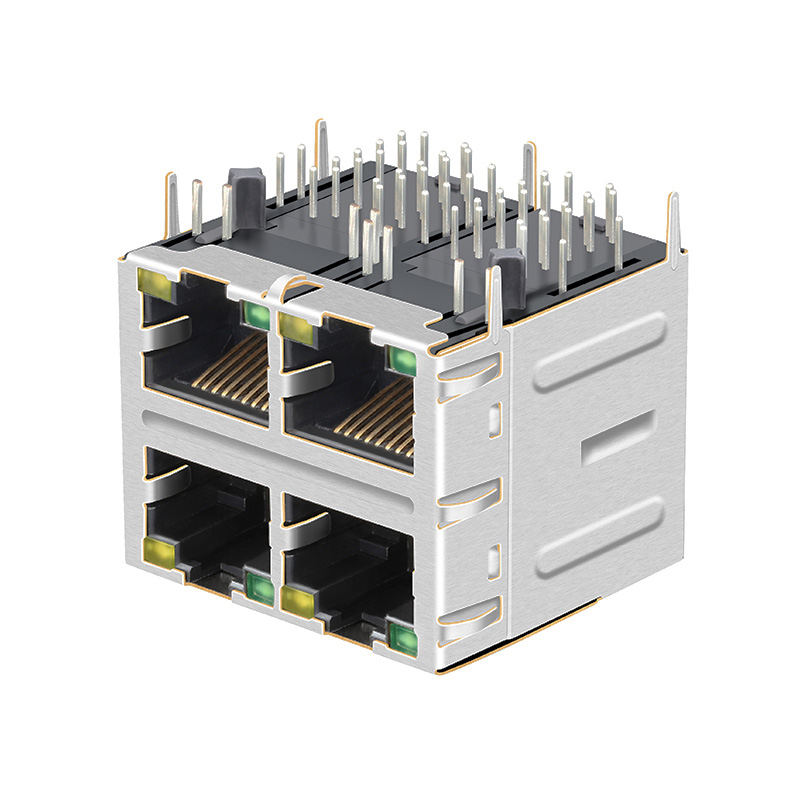

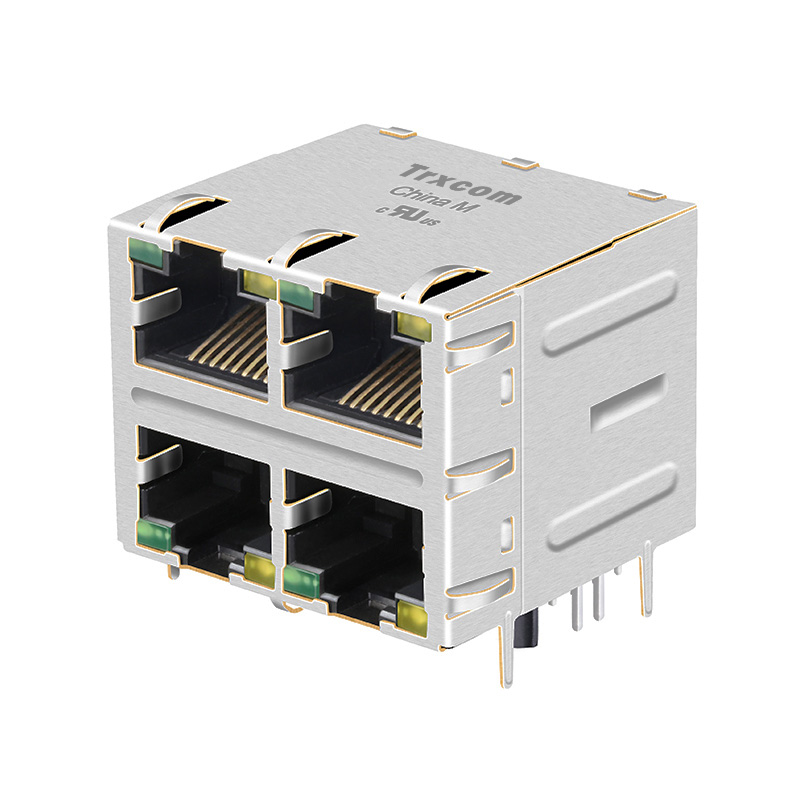

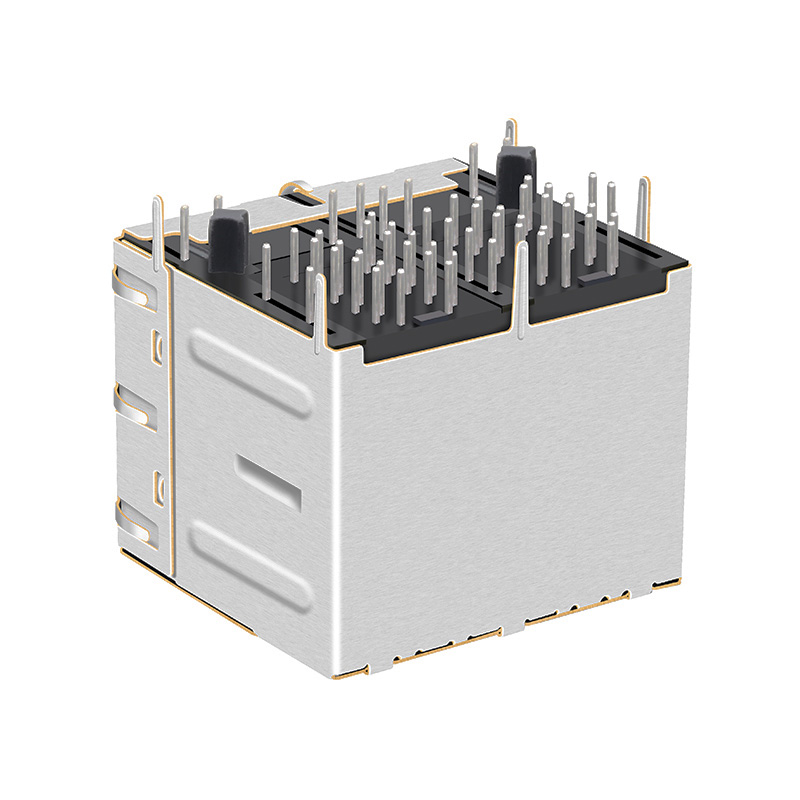

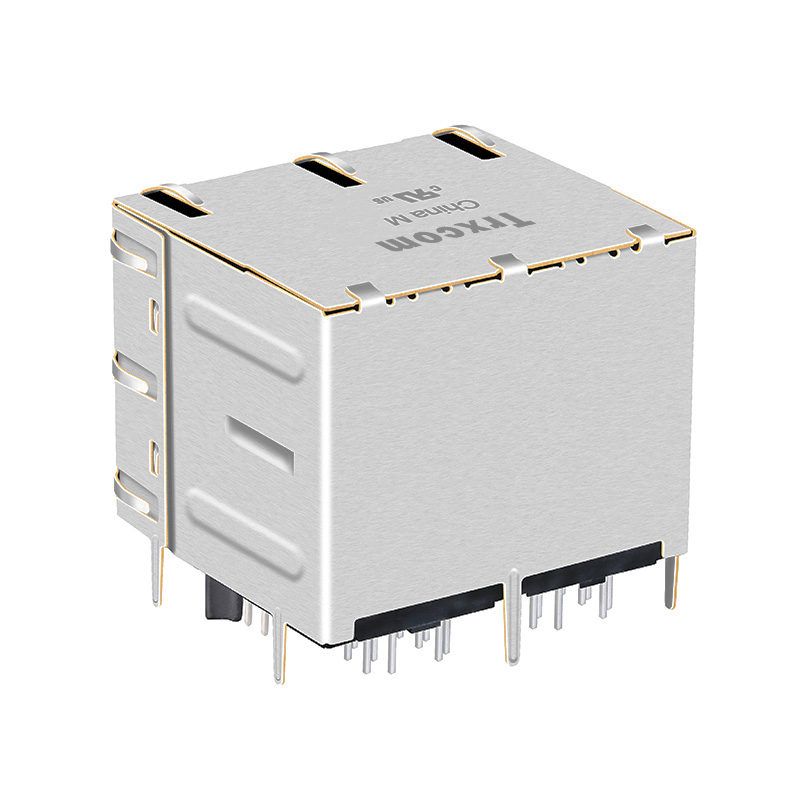

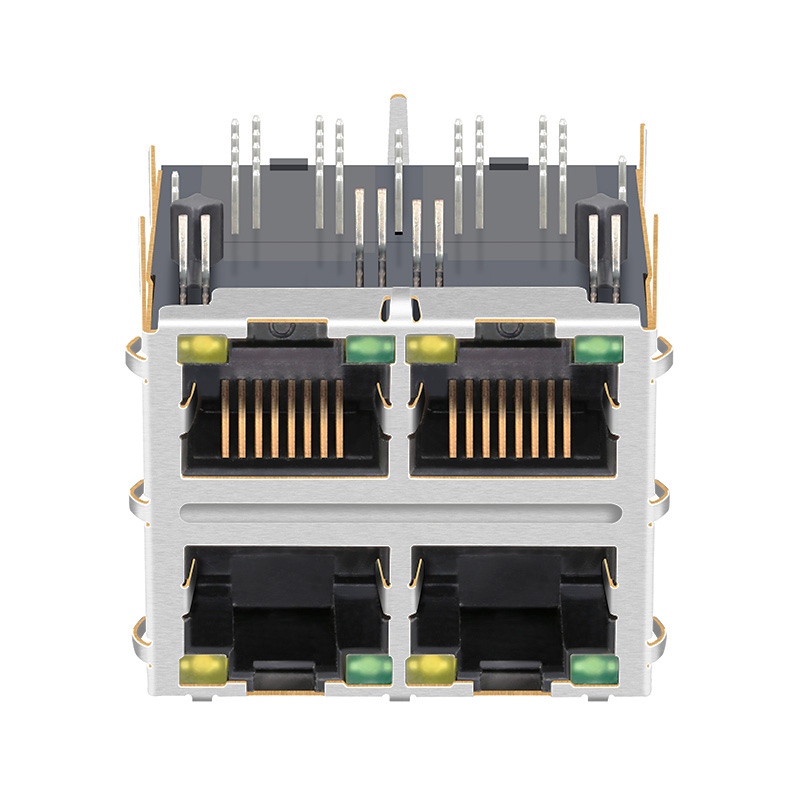

The Trxcom TRJG27037AENL is a 2×2 port magnetic ethernet RJ45 connector specially designed for 1000 Base-T Ethernet applications. The product integrates magnetic components and is equipped with green/green and yellow LED indicators for status display. It complies with IEEE 802.3, UL, RoHS and ISO standards, and can be applied to devices such as network cards, optical terminals, game controllers and automation systems. Adopting Through-Hole Technology (THT) mounting design, it ensures stable connection, sturdy and durable structure and reliable performance, and does not support PoE function.
| Part Number | TRJG27037AENL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 10p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 2x2 Port | Speed | 10/100/1000 Base-T |
| Latch | Up/Down | Cores per Port | 8 |
| Orientation | 90° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | With | LED Option | Green/Yellow |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 1.015/25.79 | Package Length (Inches/mm) | 1.118/28.40 |
| Package Width (Inches/mm) | 1.230/31.24 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
