10/100 Base-T Vertical RJ45 Magnetic Jack Without LED TRJD4011DNL
share
Parameter
Brand: ： Trxcom
P/N: ： TRJD4011DNL
Port: ： 1X1
PoE: ： NONE-PoE
Latch: ： Vertical
LED: ： No LED
Mount: ： 0℃ to 70℃
Shield Tabs: ： No
DetailReview(0)

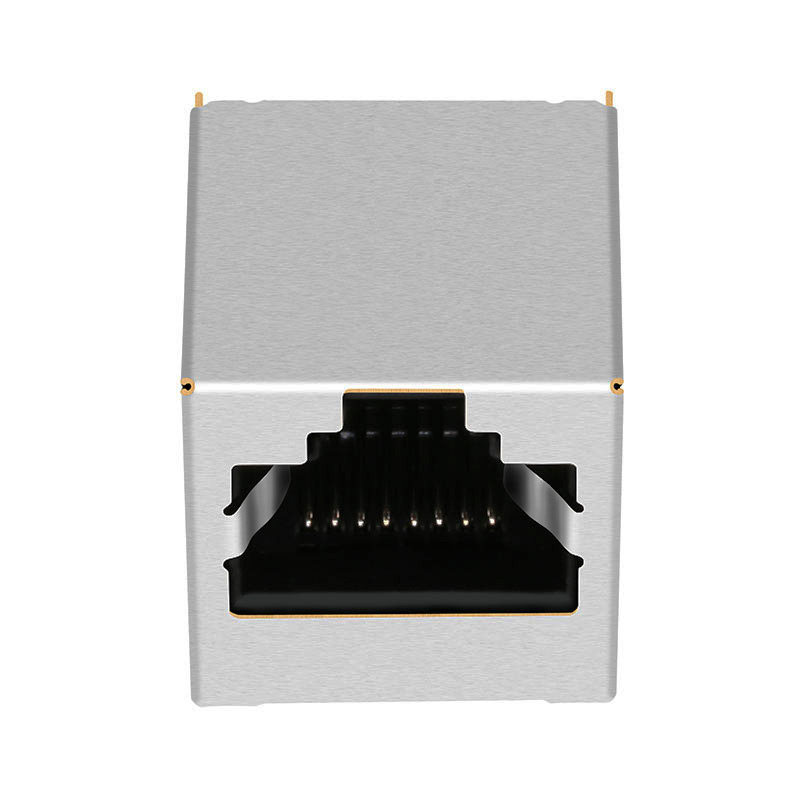

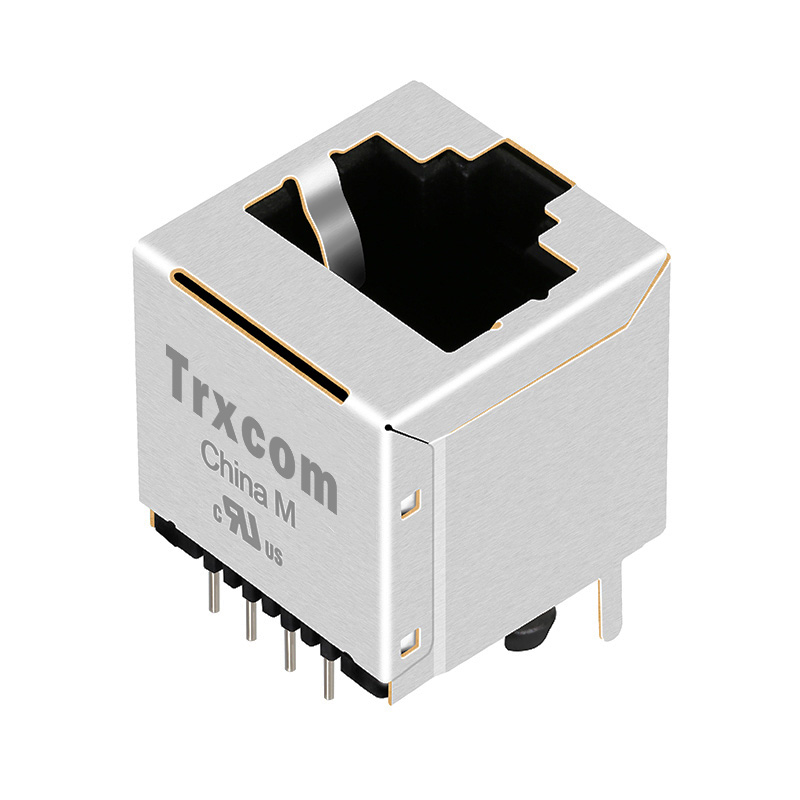

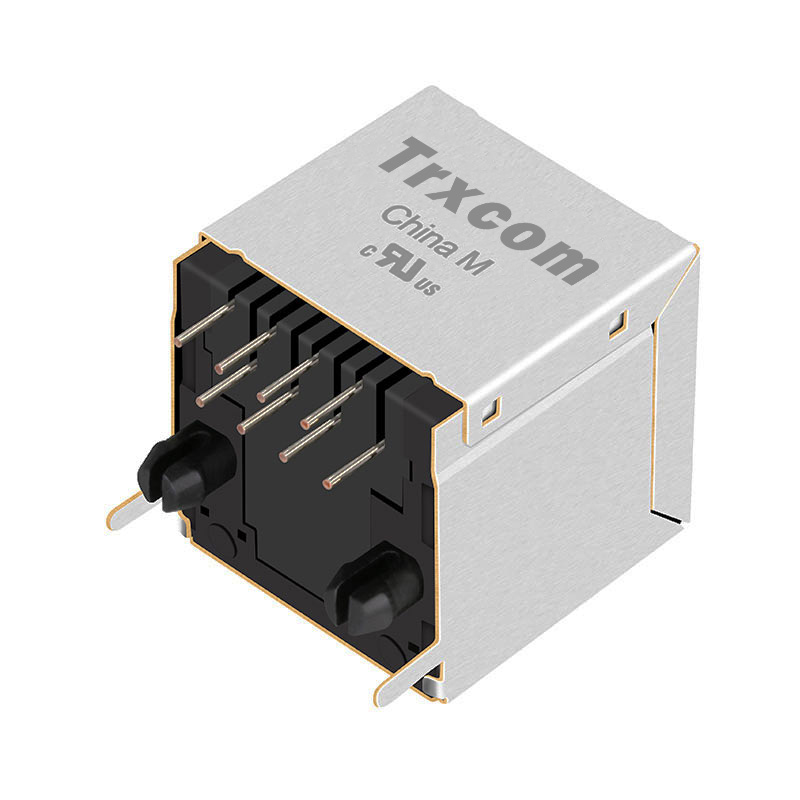

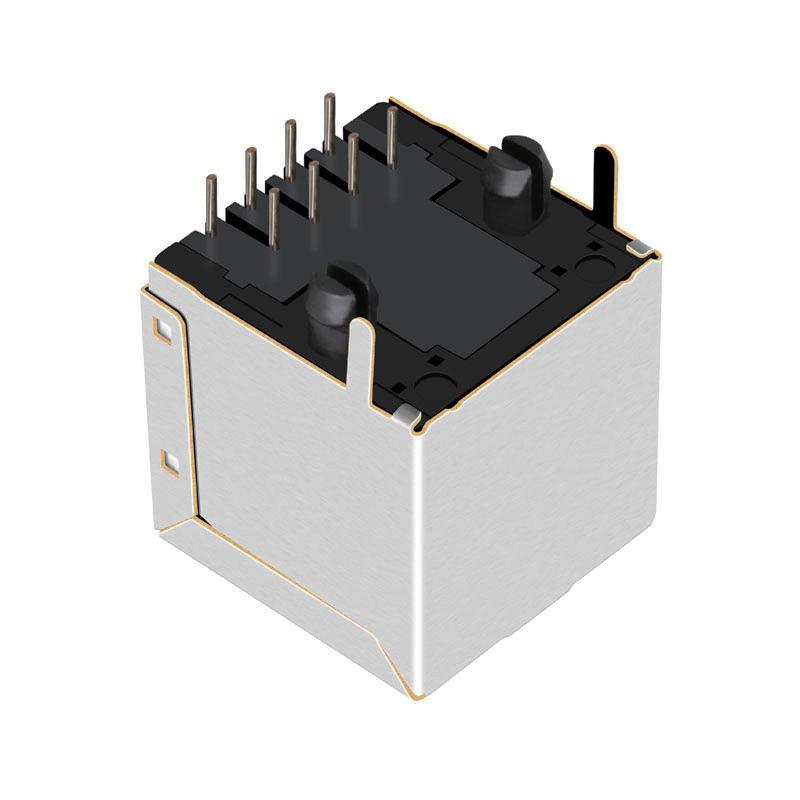

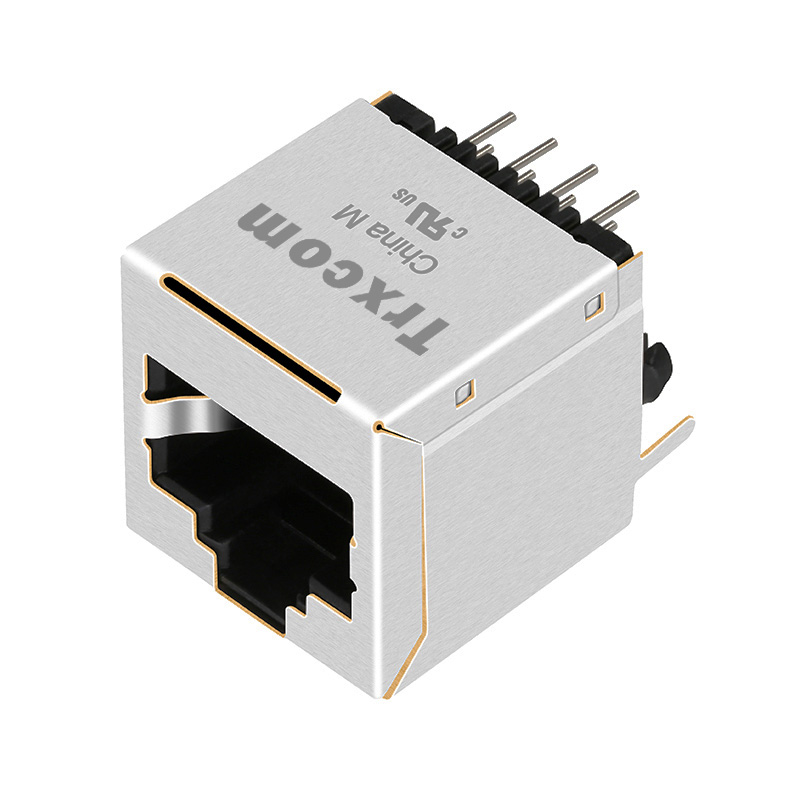

Trxcom TRJD4011DNL 10/100 Base-T Vertical RJ45 Jack For Server And New Energy(Top Entry,Without LED)
The TRJD4011DNL speed 10/100 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as New Energy, Server, Surgical Equipment.
| Part Number | TRJD4011DNL | Connector Type | Jack |
| Part Status | Active | Mounting Type | Through Hole |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | Application-Lan | Ethernet(NoN PoE) |
| Number of Ports | 1x1 Port | Speed | 10/100 Base-T |
| Latch | Up | Cores per Port | 4 |
| Orientation | 180° Angle (Right) | PCB Mount Angle | SIDE ENTRY |
| Shield EMI Tabs | Without | LED Option | Without |
| PCB | FR4 | PCB Retaining Post | T POST |
| Package Height (Inches/mm) | 0.667/16.95 | Package Length (Inches/mm) | 0.665/16.90 |
| Package Width (Inches/mm) | 0.630/16.00 | Temperature | -40℃ TO 85℃ |
| Bst Circuit | Yes | AutomDX | YES |
| Diodes | No | Contact Mating Area Plating | GOLD 6u"/15u"/30u" |
| Turns Ratio RX/TX | 1CT:1CT | Configuration RX/TX | T,C |
