In-depth Introduction to SFP, SFP+ and SFP28 Optical Modules: Similar in Appearance, Vastly Different in Performance
In network engineering deployment, SFP, SFP+ and SFP28 optical modules are the most commonly used small form-factor hot-swappable optical components. The three share highly consistent appearance dimensions and all adopt the 14mm-wide SFP standard packaging, which often confuses many engineering staff during model selection and deployment. Moreover, misjudgment of compatibility may lead to issues such as abnormal device operation and bandwidth waste. With over 20 years of in-depth expertise in network communication connection solutions, Trxcom analyzes the differences among the three from an engineering perspective, covering technical essentials, core distinctions, practical compatibility and selection logic, helping frontline staff achieve accurate application.
I. Iteration Logic: Phased upgrading from 1G to 25G to adapt to network bandwidth
The core iteration logic of the three lies in technical optimization centered on the upgrading of network bandwidth requirements. Their suffix markers directly correspond to their core rate capabilities, with no unnecessary gimmicks, fully serving practical engineering needs:
1. SFP (Small Form-factor Pluggable): As the first generation of compact hot-swappable optical modules with no additional suffixes, it is primarily designed for gigabit-level transmission. Its standard single-channel rate is 1.25Gbps, and some models can reach up to 4Gbps (compatible with Fibre Channel scenarios). Serving as a core component for early gigabit local area networks and access networks, it features high stability and low cost, and is still widely used in legacy gigabit networking environments to this day.

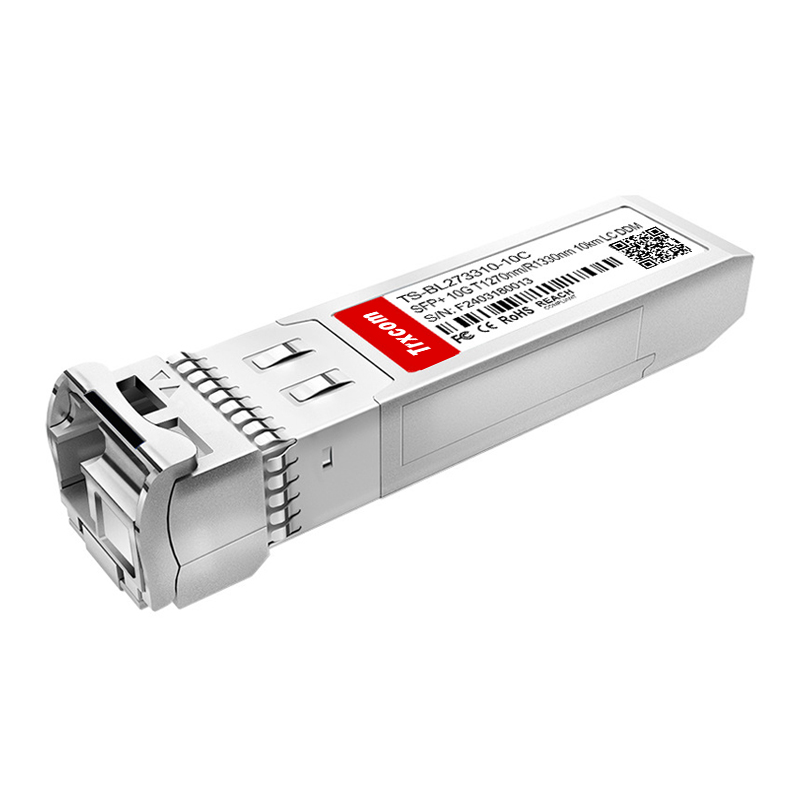

2. SFP+ (SFP Plus): With the popularization of 10-gigabit networks, the rate bottleneck of SFP modules became prominent. As an enhanced version, SFP+ came into being. Its core rate is upgraded to 10.3125Gbps (standard 10G rate). Based on the SFP package, it optimizes the signal integrity design and adds the FEC (Forward Error Correction) function, which solves the problems of signal attenuation and packet loss in high-speed transmission. It has been the mainstream module for 10G networking in data centers and enterprise core networks over the past decade.

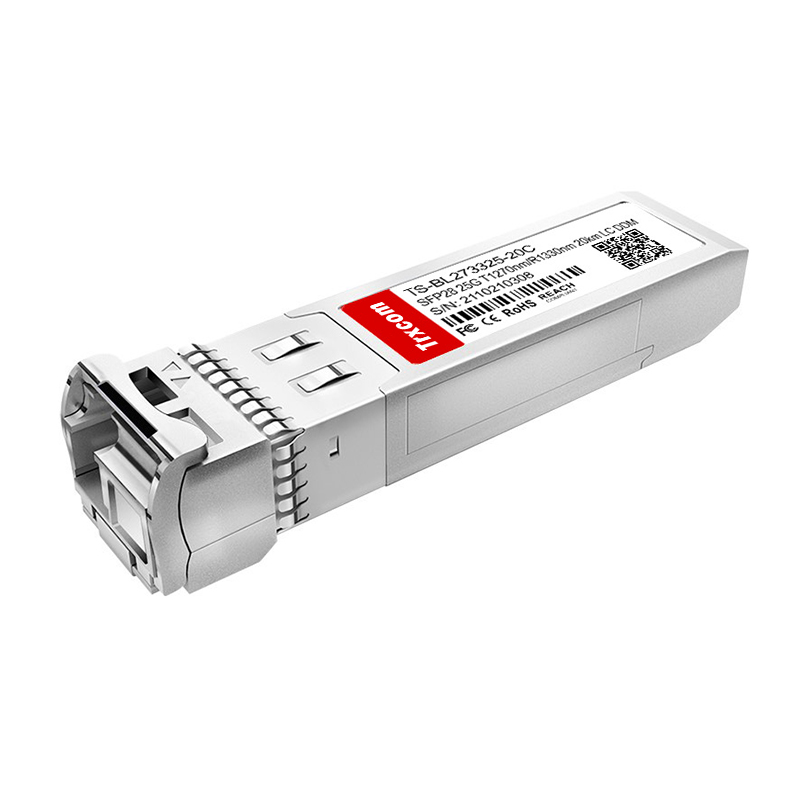

3. SFP28: In response to the 25G bandwidth demands of 5G fronthaul, AI computing power clusters and high-density data centers, the 10G rate of SFP+ can no longer meet the requirements, leading to the launch of SFP28. The number "28" corresponds to its standard single-channel rate of 25.78125Gbps, which is 2.5 times that of SFP+. Its core optimization lies in the adoption of a more efficient encoding scheme (supporting NRZ/PAM4), while keeping the power consumption per port within 1W, balancing high speed and low power consumption. It serves as a core transitional component for the current upgrade from 10G to 100G. (Four SFP28 modules can form a 4×25G link, adapting to the breakout of QSFP28 100G ports.)
In short, the iterative relationship among the three generations follows the sequence of "1G→10G→25G". Appearance compatibility is designed to reduce engineering upgrade costs and prevent full equipment replacement caused by changes in module packaging, while essential leaps have been achieved in internal electrical characteristics and rate capabilities.
II. Core Differences: Comparison of Key Technical Parameters from an Engineering Perspective
For frontline engineers, there is no need to pay excessive attention to complex underlying chip technologies. By focusing on the following five core dimensions, you can quickly distinguish between the three and avoid selection misunderstandings (all data comes from commonly used specifications in engineering practice, not theoretical limit values).
1. Speed & Encoding: Determines the maximum bandwidth and affects transmission stability
SFP: Adopts basic NRZ encoding with a rate range of 1.25Gbps to 4Gbps, and 1Gbps as the mainstream rate. It features simple signal processing and no FEC function, making it suitable for scenarios with low bandwidth, short transmission distance and low latency sensitivity (such as monitoring data backhaul and desktop access);
SFP+: Adopts enhanced NRZ encoding and supports FEC forward error correction. With a standard rate of 10.3125Gbps, it can compensate for signal loss in high-speed transmission via FEC, reduce packet loss rate, and adapt to 10G core networking.
SFP28: It supports dual encoding of NRZ and PAM4 with a standard rate of 25.78125Gbps. PAM4 encoding delivers higher spectral efficiency, and some models can be upgraded to 50Gbps via PAM4 while retaining the FEC function. It balances high speed and stability, and is suitable for 25G high-density deployment.
2. Compatibility: Physical insertable ≠ electrical interoperable, essential for engineering deployment
The three have identical physical dimensions and can be inserted into each other's ports, yet they are incompatible in electrical characteristics. This is one of the most common pitfalls in engineering. Summarized based on practical operation experience as follows:
SFP and SFP+: When an SFP module is inserted into an SFP+ port, it can operate normally at a reduced speed of 1Gbps through device rate negotiation. However, inserting an SFP+ module into an SFP port will result in complete failure to start due to mismatched supply voltage and signal amplitude. Even if the device shows "recognized", issues such as no signal and severe packet loss will occur, which requires special attention during the upgrade of legacy devices.
SFP+ and SFP28: Bidirectional compatibility (device firmware support for rate negotiation is required). When an SFP28 module is inserted into an SFP+ port, it will automatically downshift to operate at 10Gbps. When an SFP+ module is inserted into an SFP28 port, it also runs stably at 10Gbps, yet it cannot activate the 25G rate of the SFP28 port. It is necessary to manually lock the rate on the device to prevent negotiation abnormalities.
Supplement: SFP modules cannot work stably after being inserted into SFP28 ports. Signal instability is prone to occur even with speed reduction, and cross-generation mixed use is not recommended.
3. Transmission distance: The transmission rate is inversely proportional to the distance, and fiber optic specifications need to be matched.
In engineering deployment, the transmission distance of optical modules must be strictly matched with the fiber type (multimode OM3/OM4, single-mode). The actual operating transmission distances of the three are as follows (all are common specifications, not extreme values):
- SFP (1G): The transmission distance of multimode fiber (OM3) can reach 550 meters, and that of single-mode fiber (1310nm) can reach 10 kilometers. It requires no complex signal amplification and is suitable for campus access and building interconnection.
- SFP+ (10G): The transmission distance of multimode fiber (OM4) is 300 meters, and that of single-mode fiber (1310nm) is 10 kilometers. If longer transmission distance is required, enhanced models are available with a maximum reach of 40 kilometers, though the cost will increase significantly.
- SFP28 (25G): Due to the increased rate, the transmission distance of multimode fiber is shortened to 100m (OM4 fiber, the most commonly used multimode specification in engineering). Single-mode fiber is available in multiple ranges: LR type (1310nm) for 10km, ER type (1310nm) for 40km, and ZR type (1550nm) for 80km, meeting the requirements of different long-distance networking scenarios.
Tip: For ultra-short-distance connections (interconnection between servers and switches within the cabinet), priority should be given to DAC passive copper cables (≤3m) or AOC active optical cables (≤5m). They feature lower costs and lower latency compared with optical modules plus optical fibers.
4. Application Scenarios: Select models on demand to avoid bandwidth waste or insufficient performance
Combined with practical engineering scenarios, the application boundaries of the three are clear without ambiguous areas, as detailed below:
- SFP (1G): Mainly used in the gigabit access layer, such as enterprise desktop switches, campus network access ports, monitoring camera data backhaul, and FTTH OLT-side ports. It is suitable for scenarios with low bandwidth and multiple nodes, featuring the lowest cost and easy maintenance;
- SFP+ (10G): Applied to 10G core layer and aggregation layer scenarios, such as uplink ports of data center servers, interconnection of enterprise core switches, and early fronthaul of 5G base stations (CPRI protocol). It serves as a 10G networking solution balancing performance and cost, and is still widely used at present;
- SFP28 (25G): The mainstream solution for the new generation of high-speed networking at present. It is mainly applied to the interconnection between 25G servers and ToR switches in data centers, 5G base station fronthaul (adopting the eCPRI protocol to meet low-latency and high-bandwidth requirements), AI computing power clusters, and the backbone upgrade of 25G enterprise networks. As the optimal transition solution from 10G to 100G, it can effectively protect existing equipment investment.
5. Cost and Power Consumption: Core Considerations for Engineering Economics
From the perspective of engineering cost control, there are significant differences in the cost performance of the three options:
- SFP: It features the lowest cost, with the price of a single module approximately 1/3 of that of SFP+, and power consumption ≤ 0.5W, making it suitable for large-scale and low-cost deployment;
- SFP+: Balanced cost performance with a moderate single-module price and power consumption ≤ 0.8W. It has been the mainstream choice for 10G networking over the past decade and boasts a huge installed base market.
- SFP28: The unit price of a single module is slightly higher than that of SFP+, yet it features a lower cost per bit. With a 25G rate, which is 2.5 times that of SFP+, its price is only 1.2 to 1.5 times higher. It has a power consumption of ≤1W, making it ideal for building new high-speed networks or upgrading 10G networks, and it delivers better cost-effectiveness in the long run.
III. Engineering Selection Practical Form: Quick Query and Precise Matching
Comparison Dimensions | SFP | SFP+ | SFP28 |
|---|---|---|---|
Standard Rate | 1.25Gbps (Mainstream), up to 4Gbps | 10.3125Gbps (Standard 10G) | 25.78125Gbps (Standard 25G), partial support for 50Gbps (PAM4) |
Encoding Method | NRZ (No FEC) | Enhanced NRZ (FEC Supported) | NRZ/PAM4 (FEC supported) |
Multimodal Distance (Commonly Used) | 550m（OM3） | 300m（OM4） | 100m（OM4） |
Single-mode Distance (Commonly Used) | 10km（1310nm） | 10km（1310nm），最高40km | 10km（LR）、40km（ER）、80km（ZR） |
Power consumption | ≤0.5W | ≤0.8W | ≤1W |
Core Application | Gigabit Access, Monitoring Backhaul, FTTH | 10G core network, data center uplink, early 5G fronthaul | 25G Data Center, 5G eCPRI Fronthaul, AI Cluster |
Compatibility | SFP+ ports can be downgraded to 1G, while SFP28 ports are not supported. | Supports 10G transmission via SFP28 ports and is compatible with SFP ports (SFP modules can only be inserted into SFP+ ports). | Supports speed reduction to 10G via SFP+ port, incompatible with SFP ports |
IV. Pitfall Avoidance Guide for Project Deployment (Key Practical Points)
Combined with years of engineering commissioning experience, summarize 3 common pitfalls to avoid rework caused by improper selection or deployment errors:
1. Do not blindly pursue high speed: If the existing network adopts a 10G core and there is no demand for 25G bandwidth, there is no need to upgrade to SFP28, and SFP+ can fully meet the requirements. Blind upgrades will lead to bandwidth waste and higher costs. Conversely, if a 25G network needs to be deployed, make sure that device ports support SFP28 to prevent the issue of "modules being insertable but failing to reach the expected speed".
2. Compatibility testing in advance is required: Although SFP+/SFP28 modules from different manufacturers comply with the same standards, there are differences in firmware compatibility. Especially for cross-vendor mixed use (such as inserting Huawei modules into Cisco devices), it is necessary to test rate negotiation and signal stability in advance to avoid packet loss and disconnection issues.
3. Distance and Optical Fiber Matching: The SFP28 multimode module only supports a transmission distance of 100 meters (OM4). If the actual transmission distance exceeds 100 meters, single-mode LR/ER models shall be selected. Meanwhile, ensure there is no excessive loss in the optical fiber link (such as poor fusion splicing and fiber aging); otherwise, it will lead to signal attenuation and reduced transmission speed.
V. Summary
The core differences among SFP, SFP+ and SFP28 essentially lie in the gradual upgrade of network bandwidth from 1G to 25G. Their identical appearance is designed to ensure compatibility for engineering upgrades, while internal factors including transmission rate, encoding mode, transmission distance and power consumption are the key elements that determine their application scenarios. For frontline engineers, the core logic of model selection is "matching bandwidth with demands, ensuring port compatibility with devices, and adapting transmission distance to optical fibers". There is no need to excessively pursue high-end models. Only by selecting products based on actual needs and balancing economy and scalability can the stable and efficient operation of the network be realized.
In the subsequent actual deployment, if specific issues such as module compatibility and rate negotiation are encountered, targeted debugging and optimization can be further carried out based on device models and application scenarios.
