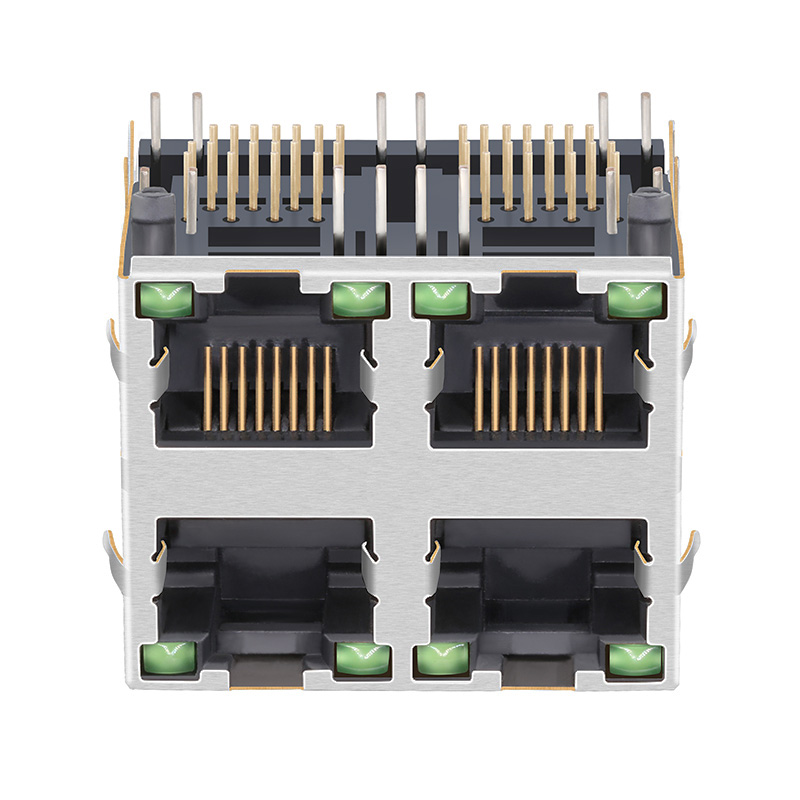

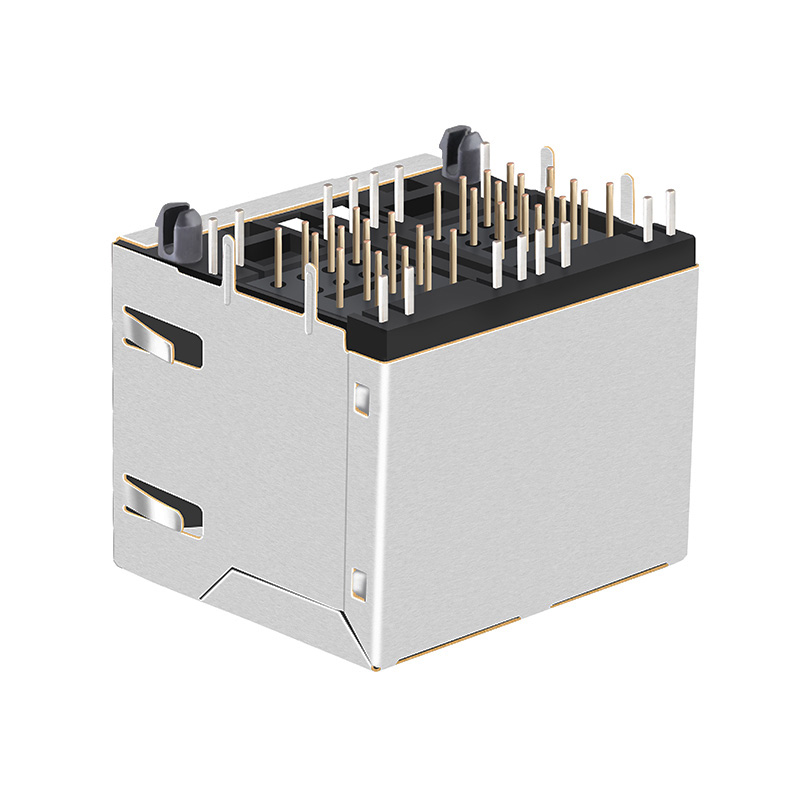

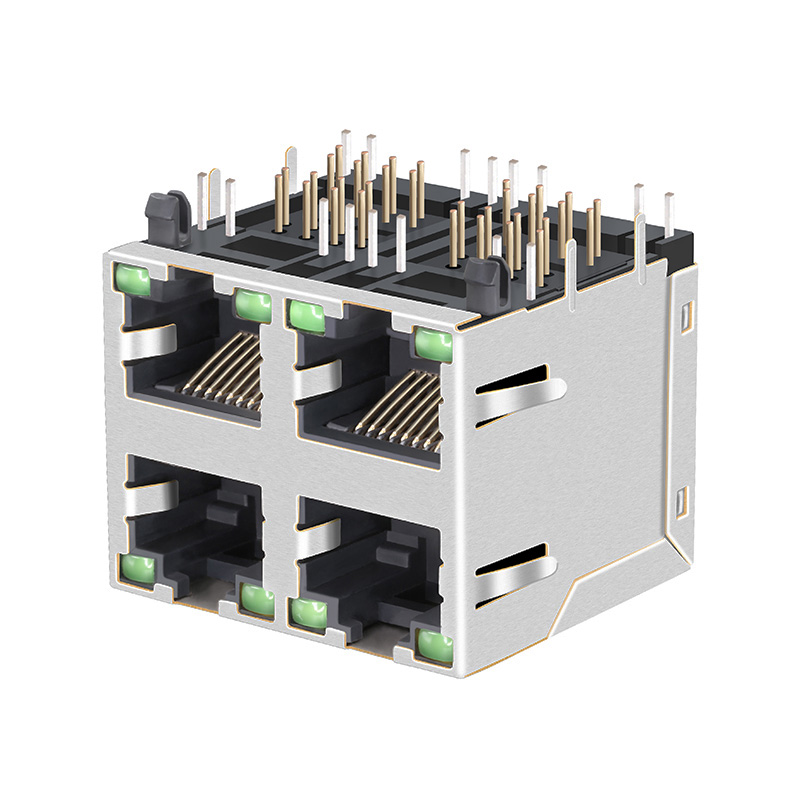

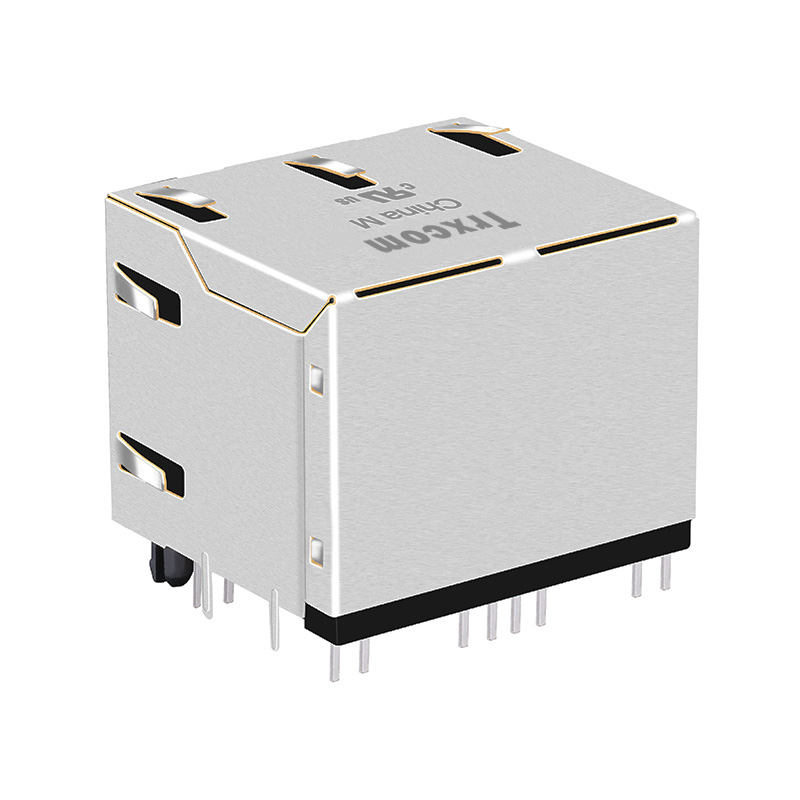

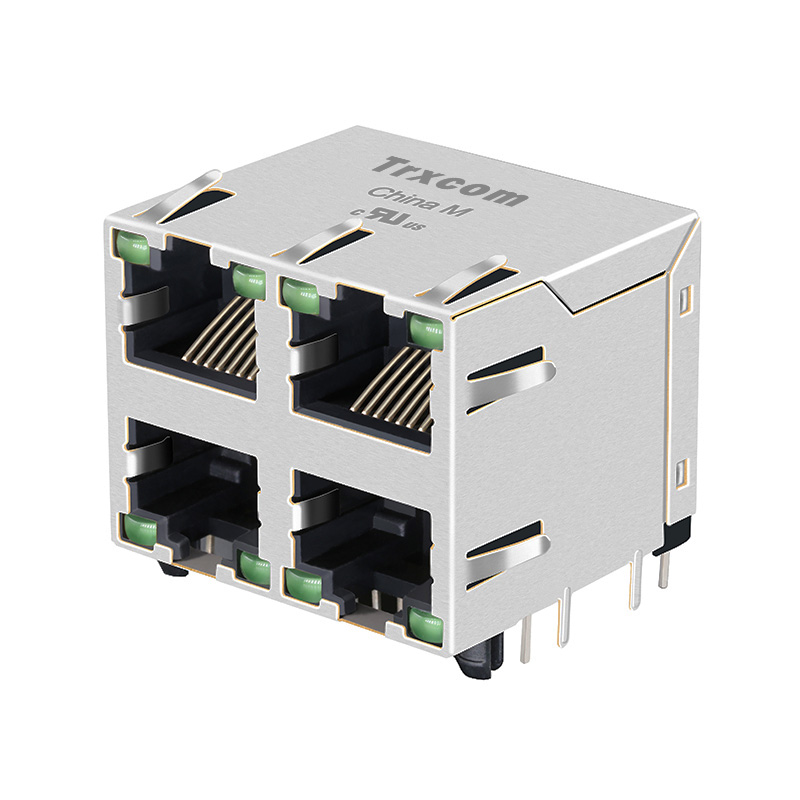

2x2 Port Jacks RJ45 Connector 1000 Base-T With Integrated Magnetics Yellow/Green LED Leds TRJG27561AGNL

share
Facebook
X
LinkedIn
Pinterest
Whatsapp
Line
Tumblr
Parameter
Brand: ： Trxcom
P/N: ： TRJG27561AGNL
Port: ： 2X2
Rate: ： 1000Base-T
PoE: ： NONE-PoE
Latch: ： Up/Down
LED: ： Green/Green
Mount: ： -40℃ to +85°C
Shield Tabs: ： Yes
Get a Quote
Consult products
DetailReview(0)

TRXCOM TRJG27561AGNL 2x2 Port RJ45 Female Connector with 1000 Base-T Integrated Magnetics, Yellow/Green LED, Tab Both, RoHS

The TRJG27561AGNL supports 10/100/1000 Base-T rate and complies with IEEE 802.3, UL, Reach, RoHS, ISO9001 and ISO14001 standards. It can be applied to devices such as network cards, optical terminals, network cameras and hard disk players.

Part NumberTRJG27561AGNLConnector TypeJack
Part StatusActiveMounting TypeThrough Hole
Number of Positions/Contacts8p8c (RJ45, Ethernet)Application-LanEthernet(NoN PoE)
Number of Ports2x2 PortSpeed100/1000 Base-T
LatchUp/DownCores per Port8
Orientation90° Angle (Right)PCB Mount AngleSIDE ENTRY
Shield EMI TabsWithLED OptionYellow/Green
PCBFR4PCB Retaining PostT POST
Package Height (Inches/mm)1.015/25.79Package Length (Inches/mm)1.118/28.40
Package Width (Inches/mm)1.230/31.24Temperature-40℃ TO 85℃
Bst CircuitYesAutomDXYES
DiodesNoContact Mating Area PlatingGOLD 6u"/15u"/30u"
Turns Ratio RX/TX1CT:1CTConfiguration RX/TXT,C
